H-60/S-70 Flight Control Hardware Plate

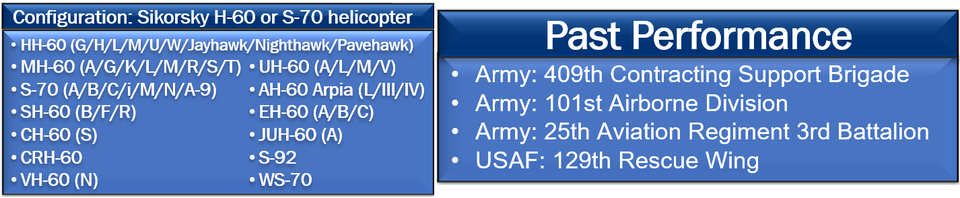

The H-60/S-70 Flight Control Hardware Plate consolidates 172 hardware components into a single location. The H-60/S-70 Flight Control Hardware Plate is configured for the Sikorsky H-60 and S-70 helicopters.
Maintenance Usage
MAJOR USE OF THE PLATE
360 Hour Phase Maintenance Inspection (PMI)
720 Hour Phase Maintenance Inspection (PMI)
Failure of Pin Insertion
Main Rotor Rig Check
Tail Rotor Rig Check
ENTIRE USE OF THE PLATE
48 Month Flight Control Inspection
PARTIAL USE OF THE PLATE
Any task that calls for removal of the following:
Removal/Replacement of individual Flight Control Rods
Removal of Boost Servo(s)
Removal of Mixer
Removal of Manifold/Baseplate
Removal of Primary Servo(s)
Patent Number: 10,471,586
